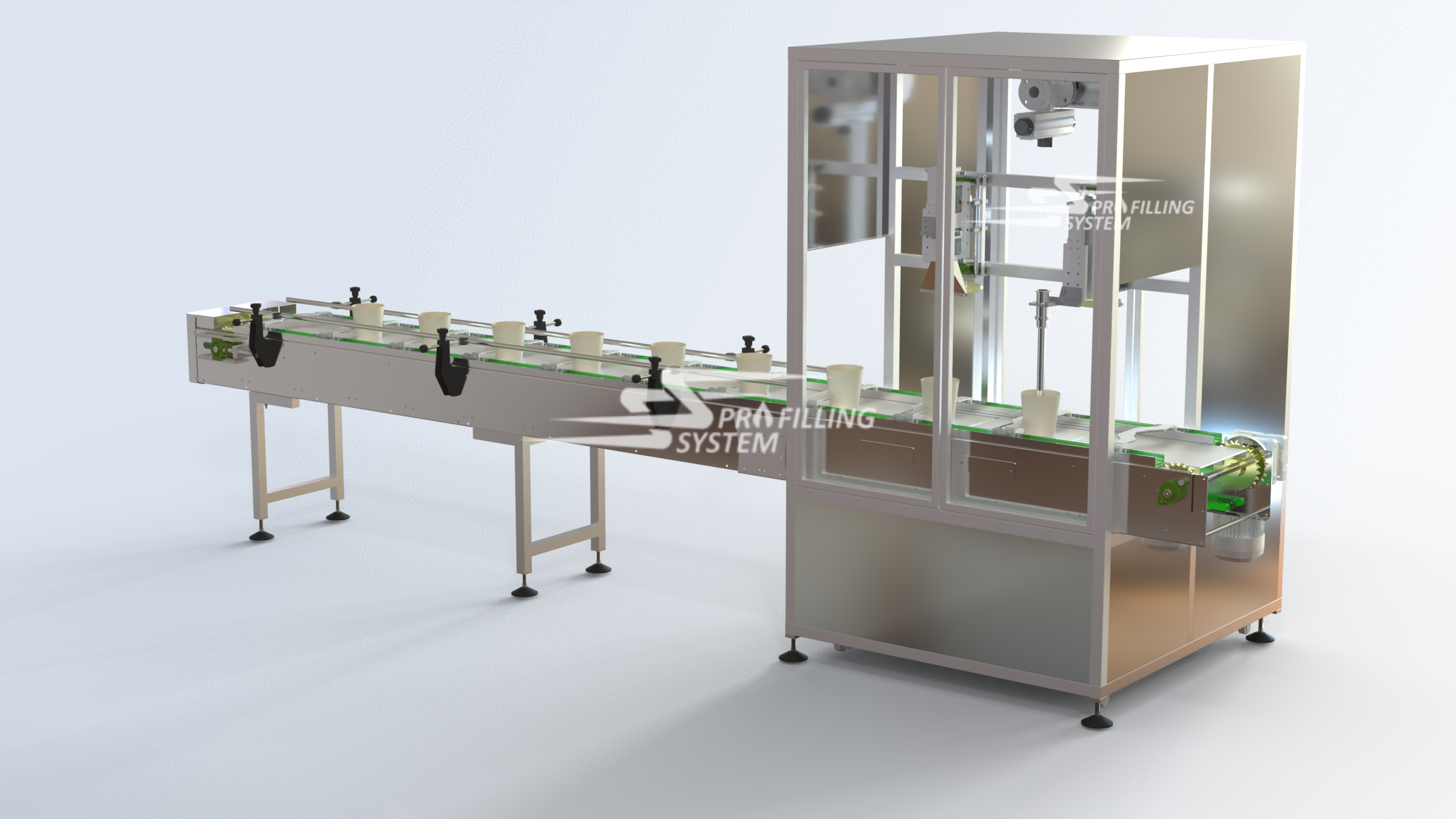

SMALL CONTAINER FILLING MACHINE (SSP-SSF)

SMALL CONTAINER FILLING MACHINE (SSP-SSF)

A small container-filling machine is used for filling multiple small containers with semi-solid fluids. These machines are flexible to use with different SKUs & flexible and cost-effective. They are designed to handle various types of semi-solids, including greases, creams, and a wide variety of thicker chemicals.

Specifications:

  • Filling Capacity: 0.5kg to 5kg | Speeds up to 16 Containers/min.
  • Filling Methods: Volumetric, Servo-Gear pump filling
  • Accuracy: ±1% of the total filled volume.
  • Filling Heads: 1 to 4 heads for scalable production.
  • Materials: MS(powder coated) Stainless Steel (SS n7/304/316), food-grade seals, and components.
  • Control System: PLC, Touchscreen HMI for easy operation.
  • Compatibility: Suitable for 20,000 to 30,000 cst greases at 60º C, hot and cold filling.
Categories: ,

Description

Features:

  • Diving nozzle with positive cut-off.
  • Bottom filling method (Filling starts from the bottom towards the top of the container).
  • Small to medium capacity hopper tank for grease with level sensor and auto feedback facility.
  • Quick adjustable conveyor guides to accommodate different size sku’s.
  • Drip-free arrangement.
  • Horizontal & vertical scales are mounted on the machine for easy positioning of the nozzle.
  • Easy cylinder volume adjustment with mounted scales for different sku’s.
  • Standard ss slat chain conveyor with vfd control.
  • Standard reliable components & energy efficient drives.
  • Easy volume adjustment, real-time dynamic display of filling, product counter & multiple recipe storage on HMI & LCD.
  • Easy storage & retrieval of production data, alarms for timely tracking.
  • Non-contact sensors facilitate ‘’no container no fill’’ as a standard feature.
 Customizable options:

  • Buffer manifold for grease
  • Inlet side product pump with bypass arrangement.
  • Safety doors
  • Signal exchange with external control systems.
  • Additional supply: extended conveyor, Curved conveyor, Lid press m/c, Labeling m/c, Sloped packing table, Carton tapping m/c, Check weigher, Roller conveyor, Belt conveyor, etc.
