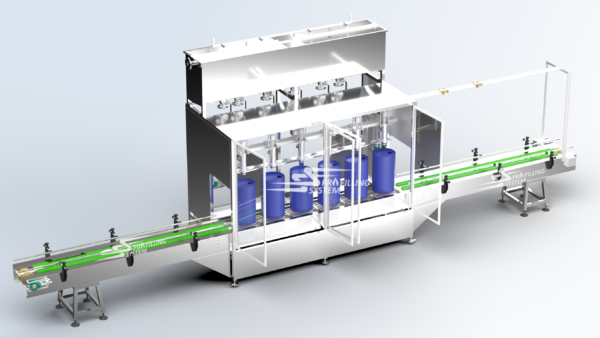

BUCKET FILLING MACHINE (SSP-LF)

BUCKET FILLING MACHINE (SSP-LF)

A bucket or pail filling machine is used for filling open buckets or drummies with a single mouth opening with liquids in a linear sequence. These machines are simple to operate, highly productive, flexible, and cost-effective. They are designed to handle various types of liquids, including lubricants, edible oils, DEF, and other chemicals.

Specifications:

  • Filling Capacity: 5L to 26L | Speeds up to 16 pails/min.
  • Filling Methods: Weigh metric (Load-cell based), Servo-Gear pump filling
  • Accuracy: ±0.1% for weigh metric & ±0.2% for volumetric of the total filled volume.
  • Filling Heads: 1–8 heads for scalable production.
  • Materials: Stainless Steel (SS n7/304/316), Oil seals, food-grade seals, and components.
  • Control System: PLC, Custom sizing Touchscreen HMI for easy operation.
  • Compatibility: Suitable for low to high-viscosity liquids, non-corrosive or corrosive liquids, and hot and cold filling.
Categories: ,

Description

Features:

  • Auto Diving nozzle or platform pop-up with positive cut-off. Two-stage coarse & fine filling cycle.
  • Top filling method (Filling starts & ends from the top only) for most liquids.
  • Bottom filling method (Filling starts from the bottom towards the top of the bottle) for foaming liquids.
  • Available with locator guide attachments on the conveyor chain for inline travel of buckets with different shapes throughout the machine.
  • Drip-free nozzle design. Drip arresting tray below the nozzles for arresting accidental drip on request.
  • Tank rinsing system with multiple rotating spray balls.
  • Standard reliable components & energy efficient drives.
  • Easy volume adjustment, real-time dynamic display of filling, product counter & multiple recipe storage on HMI & LCD.
  • Easy storage & retrieval of production data, alarms & data exchange for timely tracking.
  • Non-contact sensors facilitate ‘’no container no fill’’ as a standard feature.
 Customizable options:

  • Automatic bucket orientation before filling (for top closed buckets with single opening)
  • Custom Buffer tank
  • Inlet side product pump & auto control
  • Change part for different SKU’s
  • Safety doors
  • Powered Diving adjustment
  • Signal exchange with external control systems.
  • Additional supply: extended conveyor, Curved conveyor, Lid placing m/c, Lid press m/c, Labeling m/c, Inclined idle roller conveyor, Vacuum-assist lift system, Check weigher, Packing table, etc.
