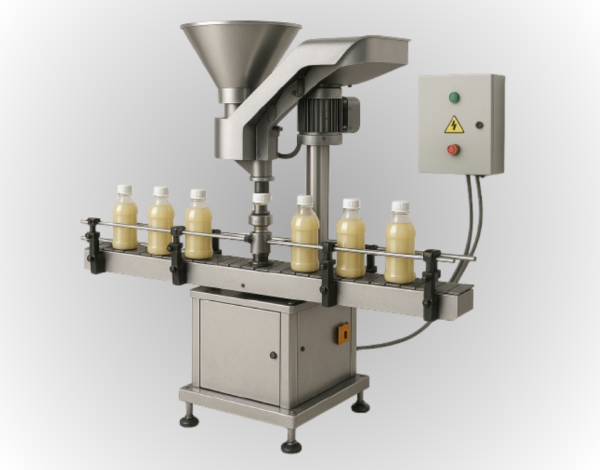

SINGLE HEAD CAPPING MACHINE (SSP-1HC)

SINGLE HEAD CAPPING MACHINE (SSP-1HC)

A capping machine is a device used in the filling and packaging industries to securely place and tighten seal caps, lids, or covers onto bottles, jars, or containers. The caps can be placed on the bottles manually or via a cap placer unit. These machines ensure consistency, speed, and reliability in the capping process, reducing manual labour and enhancing production efficiency.

Specifications:

  • Machine Type: Automatic / Semi-Automatic / Manual
  • Cap Type: Screw caps, Snap caps, Press-on caps, etc.
  • Bottle/Container Size: 250ml – 5L
  • Cap Diameter Range: 10mm – 70mm
  • Production Speed: 15 – 70 BPM
  • Torque Control: Adjustable for precise cap tightening
  • Power Supply: 220V / 415V, 50Hz
  • Power Consumption: 1kW – 5kW (depending on model and automation level)
  • Air Pressure Requirement: 0.4 – 0.6 MPa
  • Material: Stainless Steel 304 / 316 (for food and pharmaceutical industries)
  • Control System: PLC with HMI touchscreen interface
  • Conveyor Speed: Adjustable (synchronized with capping speed)
  • Cap Feeder Type: Vibratory / Centrifugal / Sorting Elevator
Categories: ,

Description

Features:

  • Adjustable torque control for secure sealing.
  • High-speed automation for large-scale production.
  • Compatibility with various cap types, including screw caps, snap caps, and press-on lids.
  • Integration with conveyors for seamless operation in production lines.
  • Product counter display on HMI.
  • Torque display on HMI (on customer request)
 Customizable options:

  • of heads
  • Servo or Pneumatic head
  • Cap feeder for automatic cap placing.
  • Adjustable for multiple formats.
  • Safety doors
  • Torque display
  • Signal exchange with external control systems
  • Additional supply: extended conveyor, Cap feeder, Vison system, etc.
