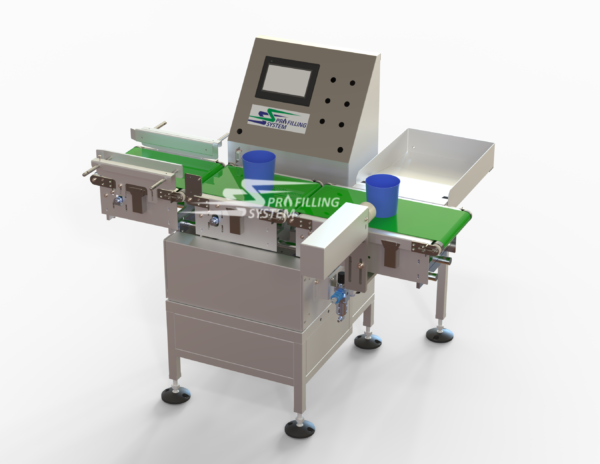

BOTTLE CHECKWEIGHER MACHINE (SSP-BCW)

BOTTLE CHECKWEIGHER MACHINE (SSP-BCW)

A bottle checkweigher machine is an automated weighing system used in production lines to verify the weight of filled bottles, cans, tubes and other small products. It ensures that each bottle meets predefined weight specifications, preventing underfilled or overfilled products from reaching the market. This helps manufacturers maintain quality control, reduce waste, and comply with industry regulations.

Specifications:

  • Weighing Capacity: 10g – 5000g (varies by model)
  • Weighing Accuracy: ± 2g to 10g
  • Bottle Size Compatibility: Diameter: 20mm – 120mm | Height: 50mm – 400mm
  • Conveyor Speed: Adjustable, synchronized with production lines
  • Power Supply: 220V / 415V, 50Hz / 60Hz
  • Air Pressure Requirement: 0.4 – 0.6 MPa (for pneumatic rejection systems)
  • Material: Stainless Steel 304/316 (food-grade, corrosion-resistant)
  • Noise Level: ≤75dB
Categories: ,

Description

Features:

  • Capable of checking 50–150 bottles per minute (BPM), depending on the model.
  • Electrical components with IP67 protection.
  • Accuracy & Precision – Ensures precise weight control with a tolerance as low as ±2g to ±10.
  • PLC & HMI Control System – User-friendly touchscreen for setting weight parameters and monitoring operations.
  • Automatic Rejection System – Removes underfilled or overfilled bottles using air jets, push arms, or drop conveyors.
  • Adjustable Bottle Handling – Can accommodate various bottle diameters and heights with easy adjustments.
  • Pvc or polyurethane belts with Anti static and lateral stability.
  • Stainless Steel Construction – Hygienic, corrosion-resistant, and compliant with food and pharmaceutical standards.
  • Real-Time Data Logging & Connectivity – Can store weight records, integrate with ERP/MES systems, and provide remote monitoring.
  • Self-Diagnosis & Alerts – Detects system errors and alerts operators for quick troubleshooting.
  • Customizable Weight Tolerance Settings – Allows operators to define acceptable weight ranges for different products.
  • Low Maintenance Design – Engineered for durability with minimal moving parts to reduce downtime.
 Customizable options:

  • Height of the conveyor from the floor
  • With bilateral rejection system
  • Signal exchange with external control systems
  • Additional supply: Sloped table, Rejection conveyor, Rejection Bin, etc.
