BUCKET FILLING MACHINE (SSP-LF)

BUCKET FILLING MACHINE (SSP-LF)

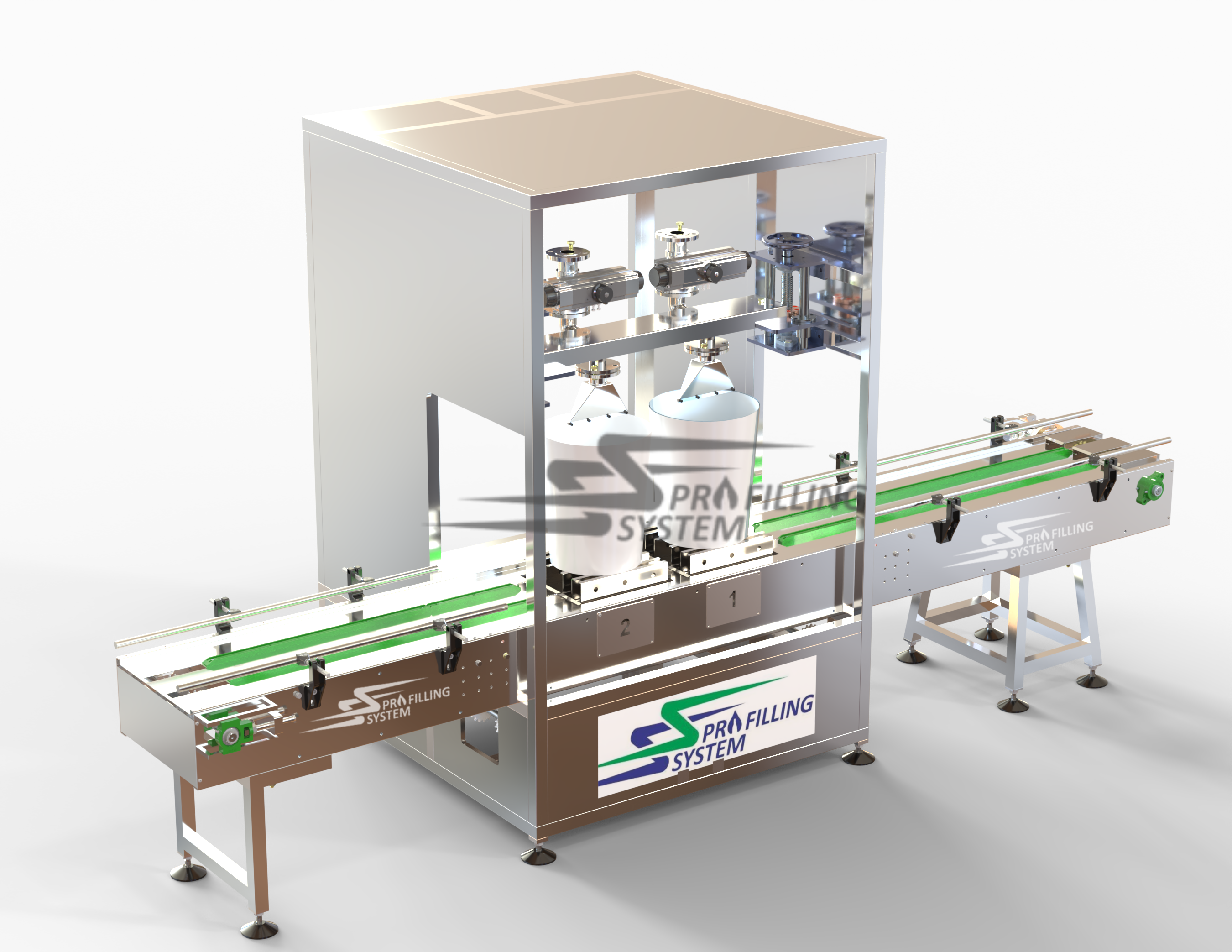

A bucket-filling machine is used for filling multiple buckets with semi-solid fluids in a linear sequence. These machines are flexible to use with different SKUs & flexible and cost-effective. They are designed to handle various types of semi-solids, including greases, creams, and a wide variety of viscous chemicals.

Specifications:

  • Filling Capacity: 10kg to 26kg | Speeds up to 8 buckets/min.
  • Filling Methods: Weigh metric (load-cell based), Servo-Gear pump filling
  • Accuracy: ±0.15% of the total filled volume.
  • Filling Heads: 1 to 6 heads for scalable production.
  • Materials: MS(powder coated) Stainless Steel (SS n7/304/316), food-grade seals, and components.
  • Control System: PLC, Touchscreen HMI for easy operation.
  • Compatibility: Suitable for 20,000 to 30,000 cst greases at 60º C, hot and cold filling.
Categories: ,

Description

Features:

  • Diving nozzle with positive cut-off.
  • Bottom filling method (Filling starts from the bottom towards the top of the container).
  • Buffer manifold for equal pressure distribution of the fluid throughout all nozzles.
  • Adjustable conveyor guides to accommodate different size sku’s.
  • Drip-free arrangement.
  • Easy nozzle height adjustment through handwheel for accommodating various sku’s.
  • SS chain conveyor with vfd control.
  • Standard reliable components & energy efficient drives.
  • Easy volume adjustment, real-time dynamic display of filling, product counter & multiple recipe storage on HMI & LCD.
  • Easy storage & retrieval of production data, alarms for timely tracking.
  • Non-contact sensors facilitate ‘’no container no fill’’ as a standard feature.
 Customizable options:

  • Buffer manifold for grease
  • Inlet side product pump with bypass arrangement
  • Safety doors
  • Signal exchange with external control systems
  • Additional supply: extended conveyor, Curved conveyor, Lid press m/c, Labeling m/c, Sloped packing table, Carton tapping m/c, Roller conveyor, Belt conveyor, etc.
